WYS50-G Electric hydraulic fixed grab
WYS50-G Electric hydraulic fixed grab
WYS50-G Electric hydraulic fixed grab -
WYS50-G Electric hydraulic fixed grab
- Model No.:WYS50-G
- Max lifting weight :15T
- Total weight:38T
- Max. lifting moment:75t.m
- Max. swing torque:7 r/min
WYS50-G Electric hydraulic fixed grabWYS50-G electrohydraulic fixed folding arm grab adopts electrohydraulic drive and pilot control for slewing, winch, luffing and grab opening and closing opera
WYS50-G Electric hydraulic fixed grab

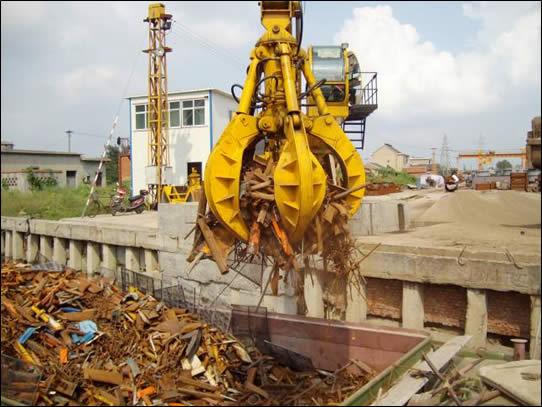

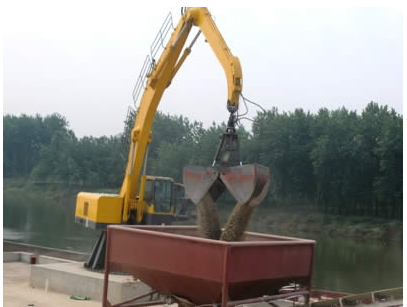

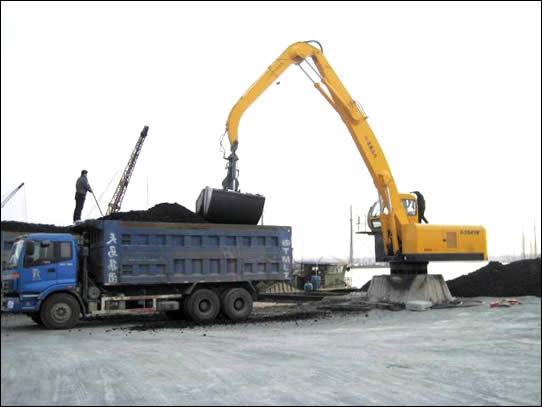

WYS50-G electrohydraulic fixed folding arm grab adopts electrohydraulic drive and pilot control for slewing, winch, luffing and grab opening and closing operations. Stable operation, stepless speed regulation for each action; 60% energy consumption can be saved compared with internal combustion engine drive under the same operating efficiency; The cab is equipped with cold and warm air conditioners and multi-directional adjustable seats, making the operating environment comfortable; After being equipped with different hydraulic grab buckets, they have small deadweight and large grasping force, and can grab bulk raw materials such as sand, coal, etc.

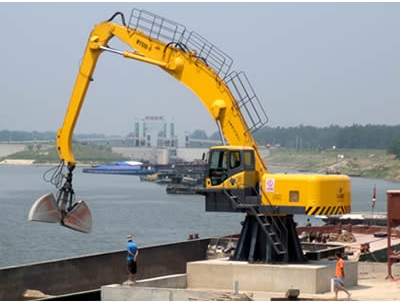

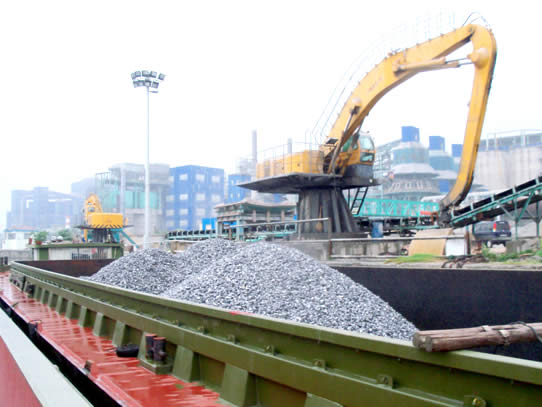

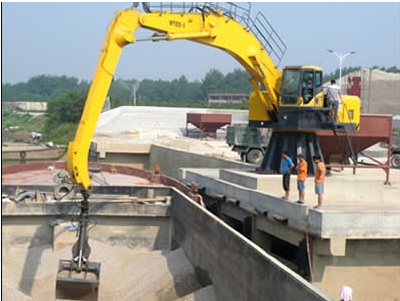

The fixed grab is the best equipment for loading and unloading bulk cargo in fixed workplaces such as ports, stations and docks.
1、main technical parameters of the complete set
Serial No. | item | unit | parameters | |
1 | overall dimension of complete | total length | m | 13.55 |
2 | total width | m | 3.66 | |
3 | total height | m | 4.74 | |
4 | power parameters | motor power | kw | 132 |
6 | Hydraulic system | working pressure of main oil circuit | MPa | 30 |
9 | working flow of main oil circuit | L/min | 2*310 | |
10 | control type | Hydraulic pilot control | ||
12 | Hydraulic tank capacity | L | 400 | |
main performance parameters of working
categories | item | Uint | parameters | |
main working performance parameters | min grab range | m | 5 | |
Max grab weight at minimum range (including grab weight) | t | 15 | ||
Max lifting moment | t·m | 75 | ||
Main action time
| Main luffing action time
| Full lifting range | s | 14 |
full fallingn range | s | 14 | ||
Max swing speed | r/min | 7 | ||
Auxiliary luffing time
| full lifting range | s | 12 | |
full lowering range | s | 12 | ||
